Bubble-Gum Making Plant

Sigma Mixture
Twin-Colour Rope Extruder
Six Way Cooling Tunnel
Automatic Bubble-Gum Cut & Wrap Machine
(Double End Twist)
Automatic Bubble-Gum Cut & Fold Wrap Machine
(Double End Top & Side Fold)

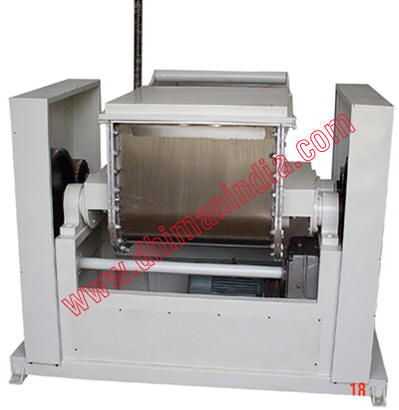

SIGMA MIXTURE

Technical Data

Application

Manufacturing of Bubble Gum / Chew gum / Gum Base and final mixing of essence and color

Capacity

200 Liters

Drum Dimension (L X W X H)

760 X 760 X 760

Steam Working Pressure

60 Lb./Sq. Inch

Drive

Mixing

Tilting

10 H.P. A.C.
1 H.P. A.C

Dimensions (L X W X H) 2000 mm X 1225 mm X 1325 mm

Weight

Net 1000 Kg.

Heavy Duty steam Jacketed Bubble Gum Mixer is used to manufacture Gum Base, Bubble Gum and Chew gum material. If do not want to use steam then It takes about 6-7 hours to manufacture gum base. After manufacturing gum base, final mixing of color & essence is done in mixer which takes about half hour. Material can be discharged by tilting the mixer which is motorized operation.

TWIN COLOUR ROPE EXTRUDER

Technical Data

Application Rope forming of bubble gum or Chew-Gum material

Capacity

1 Ton/Shift

Rope Dia

According to requirement (Flat or Round)

Drive

1524 mm X 914 mm

Dimensions (L X W X H)

1225 mm X 1200 mm X 525 mm

Weight

Net 500 Kg

Bubble Gum Twin colour rope extruder is used to manufacture single or twin colour rope of required size or flat according to requirement from Bubble Gum or Chew-Gum material. The material is fed manually into the hopper and rope formed is collected in trays or discharged onto cooling conveyor

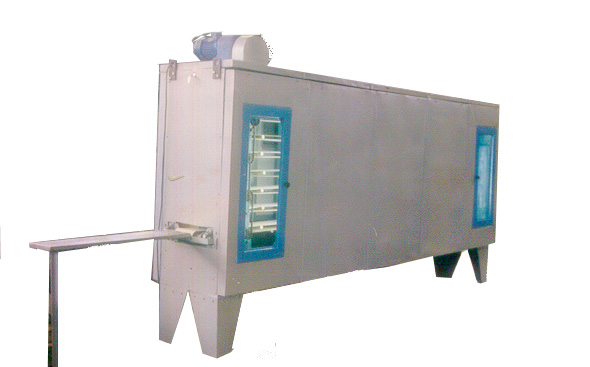

SIX WAY COOLING TUNNEL

Technical Data

Application	Cooling of Bubble-Gum Rope
Capacity	One Tonne / Shift
Deck	6 0r 13 deck
Drive	2 H.P A.C. or D.C.
Dimensions (L X W X H)	6000 mm X 300 mm X 2000 mm

Six Way cooling conveyor is used to cool the rope coming out from the extruder. It is necessary to cool the rope so as to make the cutting and wrapping operation easy. If you don't take this conveyor then the formed rope has to be kept in AC room for more than 4 hours. This conveyor makes the operation online and eliminates AC room. The conveyor has to be installed with air conditioner

TOFFEE CUT & WRAP MACHINE (DOUBLE END TWIST)

Technical Data

Application	Toffee Cutting & Wrapping Machine (Double End Twist)
Capacity	300-350 PCs/Minute. (Depending on Size of Toffee , wrapping and forming material used).
Product Size Length Toffee Width Toffee Thickness Toffee	Length 20-30 mm. Width 10-20 mm. Thickness 6-12 mm.
Wrapping Material	Continues printed cellophane, Wax Paper, PVC (Non Magnetic) and Bopp, CPP, HM etc.
Dimension (L X W X H)	1750 X 915 mm X 1930mm
Power Drive Heaters (Optional)	500 Watts 2 H.P. (A.C. or D.C.)
Weight	Net 1000 KGS

Toffee Cut & Wrap Machine automatically Cuts Toffee/ Bubble Gum and wrapping paper of the required size. Both these things are fed into a chamber where a twister twists or folds both sides of wrapping paper and wrapped product is discharged into a tray.

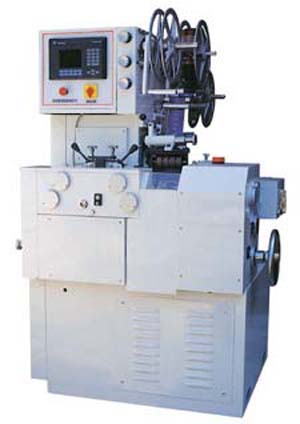

HIGH SPEED TOFFEE CUT & WRAP (SIDE FOLD)

Technical Data

Application	Toffee Cutting & Wrapping Machine (Side Fold)
Capacity	600 PCs/Min (Depending on Size of Toffee , wrapping and forming material used)
Product Size Length Toffee Width Toffee Thickness Toffee	Length 20-30 mm. Width 10-20 mm. Thickness 6-12 mm.
Dimensions (L X W X H)	1600 mm X 1250 mm X 1150 mm
Weight	Net 1000 Kg.

This machine is available in four versions. (i) Both side twist wrap (ii) One side twist and one side fold wrap (iii) Both side fold wrap (iv) Both side top fold wrap. This is high speed and latest design machine. It can be installed with photoelectric control system for Photo registration
