VACUUM COOKER







Technical Data

Application

Cooking and Vacuum

Capacity

Available 50 Kg./ 100 Kg / 200 Kg Batch

Batch Time

20-25 Minutes/ Batch

(Depending on Steam pressure and other  allied  conditions)

Steam Working Pressure

120 Lbs./ Sq. In. (According to Capacity)

Drive

Stirrer 1.5 H.P. (According to Capacity)

Vacuum Pump

5 H.P (According to Capacity)

Stirrer Speed

45-90 RPM

Dimensions (L X W X H)

1200 X 1200X 2000 mm (According to Capacity)

Weight

Net 600 Kg. Gross 750 Kg. (According to Capacity)


                  Vacuum Batch Cooker is suitable for Candy Batch manufacturing. Now a days Toffee Batch is also prepared in Vacuum Cookers. The material is cooked in upper pan and after cooking the same is discharged into lower pan for  vacuum  and remove the moisture from the Batch

 WATER CIRCULATION COOLING PLATE



Technical Data

Capacity

50 Kg / 100 kg / 200 Kg

Water Requirement

1 Liter to 50 Liters per Hour

(Depending on efficiency of Cooling required and water temperature)

Dimensions  (L X W ) Cooling Area

1524 mm X 914 mm (According to Capacity)

Over all Size (L X W X H)

1828 X 914 X 914mm (According to Capacity)

Weight

Net 500 Kg  (According to Capacity)

                   Water Cooling tilting type-cooling plate is useful for cooling and mixing of Lollypop/Candy and Toffee batch manually. The Cooling time is less on this plate then ordinary cooling plate because of continuous circulation of water inside the plate. If one side become hot, tilting the plate can use the other side.



BATCH ROLLER (MOTORIZED LIFTING)



Technical Data

Capacity

50 Kg / 90 kg

Lifting
Rollers Drive

1 H.P. (According to Capacity)

0.5 H.P. (According to Capacity)

Heater

1000 watt

Discharge Height

35 " (889 mm)

Rope Diameter

50-80 mm

Dimensions (L X W X H)

1300 X 600 X 1700mm (According to Capacity)

Weight

Net 700 Kg. Gross 1000 Kg (According to Capacity)

              Batch Former form conical shape of kneaded mixed and cooled batch of Lollypop / Candy / Toffee for further feeding into Rope Sizer. It is fitted with heaters to keep the batch warm. It's lifting and lowering mechanism helps the batch coming forward automatically. It is fitted with Stainless Steel Rollers. Electrical reverse and forward system is required extra for operating the batch former. There is ease of taking out rollers for cleaning operation.



THREE STAGE ROPE SIZER



Technical Data

Speed

Maximum 60 meter rope/minute

Application

Suitable for Lollypop / Candy forming

Drive

1 H.P. (A.C. or D.C.)

Heater

300 Watts

Sizing Wheel Size

Input 33mm

Out 21 mm

Dimension (L X W X H)

800mm X 500mm X 1100mm

Weight

325 Kg.

               Three Stage rope sizer is suitable for Lollypop / Candy / Toffee machines, which are equipped with two sets of sizer. It takes up rope from Batch roller and deliver to the rope sizer of Lollypop / Candy / Toffee machines

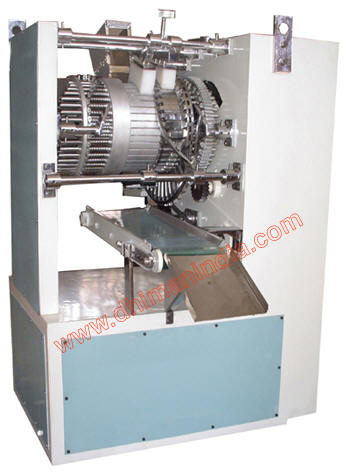

AUTOMATIC BALL-LOLLIPOP FORMING MACHINE



Technical Data

Application

Forming of Round Ball-Lollypop with stick inserted

Capacity

1500 KGs/shift

(Depending upon Shape, Size and Weight of Lollypop

Product Size

Length

Dia

50mm

 30mm

Stick size

Length

Length 50mm to 100 mm (One die one Stick Size)

Dia 3mm to 7mm (One die one Stick Size)

Dimension (L X W X H)

700mm X  850mm X 1400mm

Drive

2 H.P. (A.C. or D.C.)

Weight

Net 800 KGS

                          Ball-Lollipop type Lollypop forming machine is suitable for forming mainly round type of lollypops. depending upon size and weight of the Lollypop. Weight of Ball-Lollipop also can be reduced & increased up to 2 grams up and down in this machine. If Die is round Ball-Lollipop 25 mm it will be cylindrical after increasing weight of Ball-Lollipop



THREE WAY COOLING CONVEYOR





Technical Data

Application

Candy / Lollypop Cooling upto 2 Ton/Shift.

Drive

Wire mash drive from the forming machine.

Blower

3. H.P. A.C.

Dimension Wire mesh Belts

1st Belt

2nd Belt

3rd Belt



16 Feet X 100 mm

12 Feet X 200 mm

12 Feet X 300 mm

Dimensions (L X W X H)

5000 mm X 500 mm X 900 mm

Weight

Net 850 Kg. Gross 1200 Kg.

                    Three Way Conveyor is suitable for Candy Forming Machine having production capacity of 1 ton, 2 Ton/Shift. In three way cooling conveyor the candies will be cooled and accurate in shape. The wire mash tensioning system is very easy and simple

BALL-LOLLIPOP WRAPPING (DOUBLE END TWIST)





Technical Data

Application

Ball-Lollipop Wrapping (Double End Twist) Wrapping

Capacity

100 PCs/Min to 125 Pcs/Min

Drive

2 HP A.C. or D.C.Drive

Heaters

2 kW

Dimensions

1600 x 1450 x 1650

Weight

Net 1000 Kg. Gross 1200 Kg.

             Ball-Lollipop wrapping Machine is suitable for twist wrapping of Ball-Pop (Ball-Lollipop) Lollypops. The paper is also automatically cut into required lengths and Ball-Lollipop are individually wrapped in this paper.
