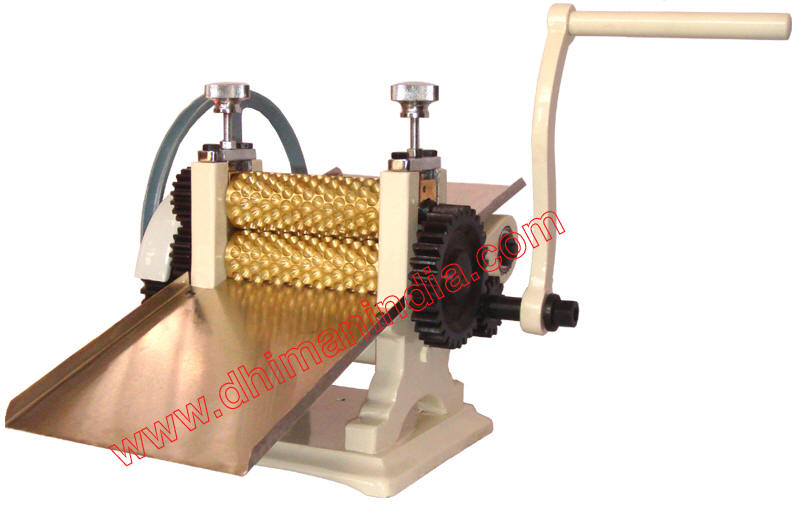

ROLLER FRAME (CANDY FORMER)







Technical Data

Application

Candy Forming / Chicklet Cutting

Capacity

200 Kg Shift (Depending upon weight of Candy)
Drive Hand Operated / 0.5 H.P.



Dimension



400mmX400X400


Roller Frame (Candy Former)  is suitable for forming almost all type, sizes of Candies or chicklet. Even the smallest size 12 mm. is possible in this machine. It can produce 200 Kg of candy / shift depending on weight of candy / Chicklet.

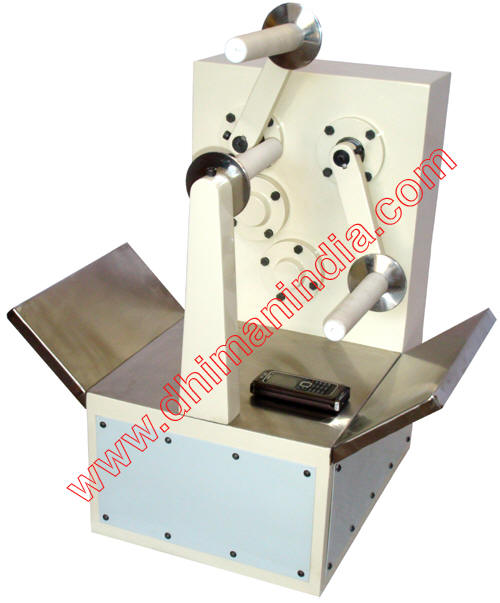

SUGAR PULLING MACHINE





Technical Data

Capacity

2 kg / 5 Kg
Drive

(According to Capacity)


                          Pulling Machine is used to produce a wide variety of products. The Pulled batch is useful to make Revari. Pulling reduce weight of Candy and make lightweight candy. It can also use to mixing Toffee Batch

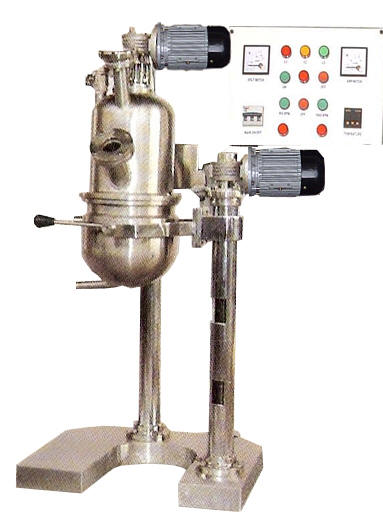

LAB VACUUM COOKER







Technical Data

Application

Cooking and Vacuum

Capacity

5 Kg / 10 Kg Batch

Drive

5 H.P. Stirrer

Vacuum Pump

1 H.P

Dimensions (L X W X H)

400 X600X 1000 mm (According to Capacity)

Weight

Net 150 Kg


                  Lab Vacuum Cooker is suitable for Candy or Toffee Batch. The material is cooked in upper pan and after cooking the same is discharged into lower pan for  vacuum  and remove the moisture from the Batch
