Toffee Making Plant

Toffee Cooker
Cooling Plate (Water Cooled)
Batch Roller (Motorized)
Five Stage rope Sizer
Pulling Machine
Automatic Toffee Cut & Wrap Machine
(Double End Twist)
Automatic Toffee Cut & Fold Wrap Machine
(Double End Top & Side Fold)

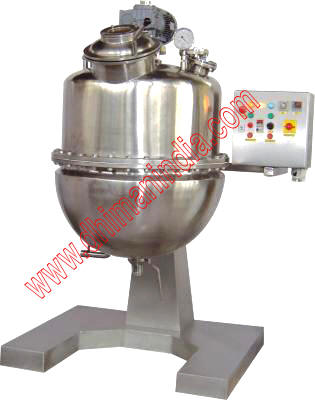

TOFFEE COOKER

Technical Data
Application	Cooking Toffee Batch
Capacity	100 Kg./ 200 Kg Batch
Batch Time	30-35 Minutes/ Batch (Depending on Steam pressure and other allied conditions
Steam Working Pressure	120 Lbs./ Sq. In.
Drive	Stirrer 2 H.P. A.C
Stirrer Speed	45-90 RPM
Dimensions (L X W X H)	1500 mm X 1000 mm X 2200 mm
Weight	Net 700 Kg.

Toffee Cooker is suitable for only toffee batch cooking only. After cooking the material is discharged by tilting the cooking pan through a hand wheel. Candy Vacuum cooker can use to make toffee batch

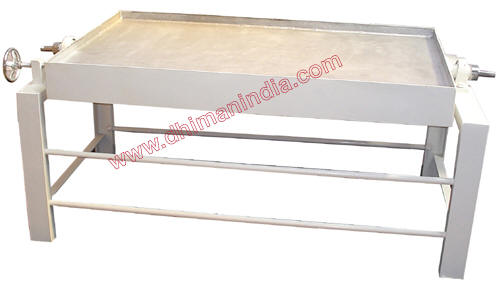

WATER CIRCULATION COOLING PLATE

Technical Data

Capacity	50 Kg / 100 kg / 200 Kg
Water Requirement	1 Liter to 50 Liters per Hour (Depending on efficiency of Cooling required and water temperature)
Dimensions (L X W ) Cooling Area	1524 mm X 914 mm (According to Capacity)
Over all Size (L X W X H)	1828 X 914 X 914mm (According to Capacity)
Weight	Net 500 Kg (According to Capacity)

Water Cooling tilting type-cooling plate is useful for cooling and mixing of Lollypop/Candy and Toffee batch manually. The Cooling time is less on this plate then ordinary cooling plate because of continuous circulation of water inside the plate. If one side become hot, tilting the plate can use the other side.

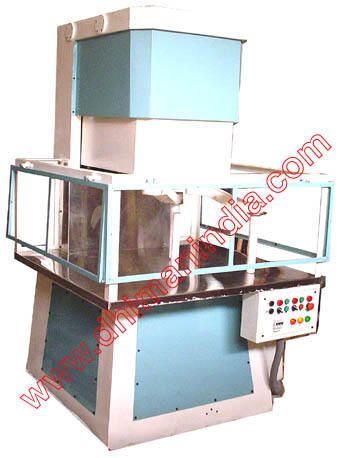

VERTICAL PULLING MACHINE

Technical Data

Capacity	25 Kg / 50 Kg / 100 Kg. batch
Drive	5 H.P. A.C. (According to Batch Capacity)
Heater	500 watt
Dimensions (L X W X H)	1550 mm X 1200 mm X 2100 mm
Weight	Net 600 Kg.

Suitable for high speed aeration and pulling of toffee, candy, fudge' or naught, with SS lined table. Complete automation with the help of the auto cycle. This machines is very easy to use with Complete Safe Automatic operation, High Speed Pulling, motorized up-down, electronic reverse and forward. Machine is fitted with Non stick Pulling Rods.

BATCH ROLLER (MOTORIZED LIFTING)

Technical Data

Capacity	50 Kg / 90 kg
Lifting Rollers Drive	1 H.P. (According to Capacity) 0.5 H.P. (According to Capacity)
Heater	1000 watt
Discharge Height	35 " (889 mm)
Rope Diameter	50-80 mm
Dimensions (L X W X H)	1300 X 600 X 1700mm (According to Capacity)
Weight	Net 700 Kg. Gross 1000 Kg (According to Capacity)

Batch Former form conical shape of kneaded mixed and cooled batch of Lollypop / Candy / Toffee for further feeding into Rope Sizer. It is fitted with heaters to keep the batch warm. It's lifting and lowering mechanism helps the batch coming forward automatically. It is fitted with Stainless Steel Rollers. Electrical reverse and forward system is required extra for operating the batch former. There is ease of taking out rollers for cleaning operation.

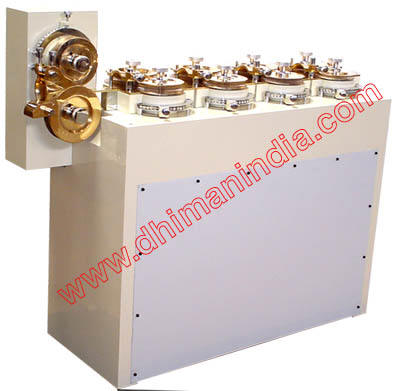

FIVE STAGE ROPE SIZER

Technical Data

Application	Suitable for Toffee, Lollypop and Candy forming Machines
Speed	Maximum 110-meter rope/minute
Drive	1.5 H.P. (A.C. or D.C.Drive)
Sizing Wheel Size	Input 41mm Out 16 mm
Dimension (L X W X H)	1300 mm X 500 mm X 1100 mm
Weight	500 Kg.

Five Rope Sizer for making and feeding rope for Toffee Cut & Wrap Machine, Toffee Cut & Fold Wrap Machine. Fitted with mild steel/gun metal sizing wheels including one vertical pulling head for better rope grip and pulling. Five Stage rope sizer can be use for Flat Lollypop, Chupa-Chup Lollypop and Candy Forming Machines

TOFFEE CUT & WRAP MACHINE (DOUBLE END TWIST)

Technical Data

Application	Toffee Cutting & Wrapping Machine (Double End Twist)
Capacity	300-350 PCs/Minute. (Depending on Size of Toffee , wrapping and forming material used).
Product Size Length Toffee Width Toffee Thickness Toffee	Length 20-30 mm. Width 10-20 mm. Thickness 6-12 mm.
Wrapping Material	Continues printed cellophane, Wax Paper, PVC (Non Magnetic) and Bopp, CPP, HM etc.
Dimension (L X W X H)	1750 X 915 mm X 1930mm
Power Drive Heaters (Optional)	500 Watts 2 H.P. (A.C or D.C.)
Weight	Net 1000 KGS

Toffee Cut & Wrap Machine automatically Cuts Toffee/ Bubble Gum and wrapping paper of the required size. Both these things are fed into a chamber where a twister twists or folds both sides of wrapping paper and wrapped product is discharged into a tray.

HIGH SPEED TOFFEE CUT & WRAP (SIDE FOLD)

Technical Data

Application	Toffee Cutting & Wrapping Machine (Side Fold)
Capacity	600 PCs/Min (Depending on Size of Toffee , wrapping and forming material used)
Product Size Length Toffee Width Toffee Thickness Toffee	Length 20-30 mm. Width 10-20 mm. Thickness 6-12 mm.
Dimensions (L X W X H)	1600 mm X 1250 mm X 1150 mm
Weight	Net 1000 Kg. Gross 1200 Kg.

This machine is available in four versions. (i) Both side twist wrap (ii) One side twist and one side fold wrap (iii) Both side fold wrap (iv) Both side top fold wrap. This is high speed and latest design machine. It can be installed with photoelectric control system for Photo registration
