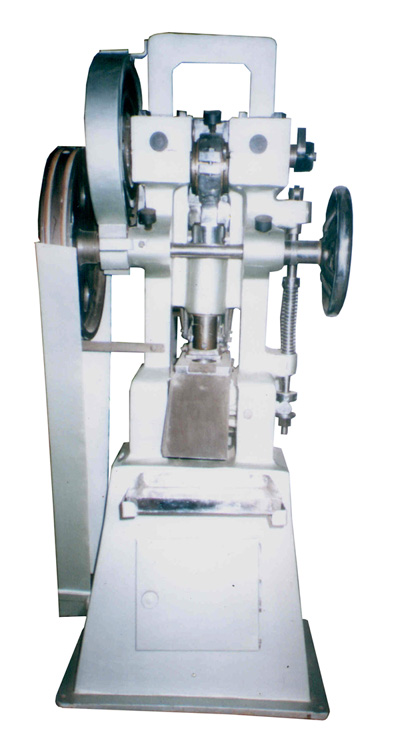

TABLET MAKING MACHINE



Technical Data

MODEL

Heavy Duty

Extra Heavy Duty

Output Per Hour

3600-36000

(According to Number of Punches and Size of Tablet)

3300-52000

(According to Number of Punches and Size of Tablet)

Maximum Running Pressure (App.)

6 Tone

8 Tone

Maximum Tablet Dia

42 mm

56 mm

Power Required

1 H.P

1.5 H.P

Net. Weight

485 Kg

625 Kg

Dimensions (L X B X H)

100 X 71 X 155

100 X 77 X 170cm

                   MULTIPUNCHES TABLET MAKING MACHINES  Single Stroke to make Small Size Tablets as well as Large Sizes Tablets Like Round Square Rectangular, Oval, Hexagonal, Capsule Shape or any other Shapes. Tablet Making Machines are useful for Pharmaceutical Industries, Chemical Industries, Food Industries, Feed stuff Industries etc.

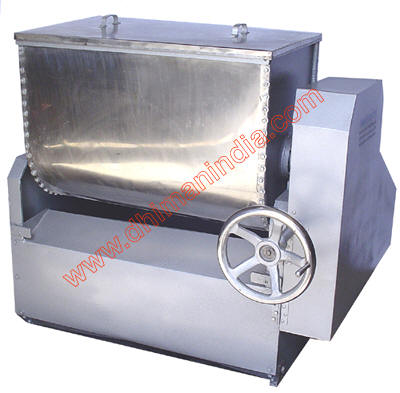

MASS MIXING MACHINE



Technical Data

Capacity

15 Kg / 40 Kg / 100 Kg / 200 Kg.

R.P.M. (blades)

40

Nett. weight

610 kg. (According to Capacity)

Power Required

 III PH 400V/AC (According to Capacity)
Dimensions (L X W X H) 127 X 138 X 121 cms. (According to Capacity)

                    Mass Mixer facilitates with automatic / manual drum titling system (according to model) consisting T-type mixing arms  for uniform mixing, fully functional system made by stainless steel involved with body covered box stand. Equipped with oil bath gear box. Mass Mixing is useful for Pharmaceutical, Confectionery, Detergent powder etc.

Available on request:- Perform double action mixing and automatic tilting by push button equipped with oil bath gear box. Pharmaceutical, Confectionery, Detergent powder.

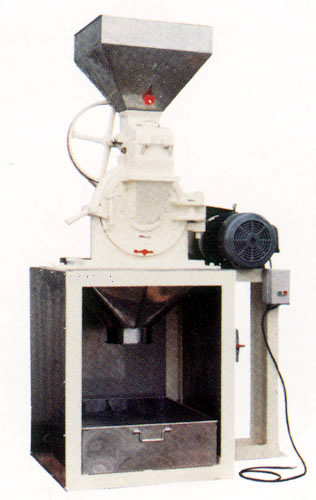

PULVERIZER (SUGAR GRINDER)



Technical Data

Capacity

100 Kg to 300 Kg According to product

Dimension  (L X B X H )

700 X 1000 X 1700

Rotor speed (RAM)

2800

Net. weight

300 kg.

              Batch Former form conical shape of kneaded mixed and cooled batch of Lollypop / Candy / Toffee for further feeding into Rope Sizer. It is fitted with heaters to keep the batch warm. It's lifting and lowering mechanism helps the batch coming forward automatically. It is fitted with Stainless Steel Rollers. Electrical reverse and forward system is required extra for operating the batch former. There is ease of taking out rollers for cleaning operation.

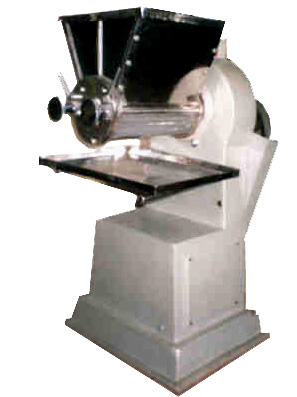

GRANULATOR



Technical Data

Application

 To Make Granules from Powder

Capacity

100 Kg / Shift

Power

 1 H.P. Three Phase

Dimension (L X W X H)

1160 mm X 800 mm X 500 mm

Weight

 350 Kg

              Granulator use to Make Graduals from powder before Tablet making machine. Horizontal Granulator with all contact parts with High Quality Stainless Steel



DRYER OVEN





Technical Data

Application

To Dry Raw material before use

Capacity

(Available) 12,24,36,48,72,96 Trays

Tray Capacity

3.5 kg

Tray Size (L X B X H)

80 X 40 X 3.2 cms.

Type

Electric

Power required

6.375 KW
Net. Weight

(According to Capacity)
Dimensions 1270 X 1370 X 1240 (According to Capacity)

          Tray Dryer is used for the best drying results in conventional process. It is a double walled cabinet with one or two doors. The gap between two walls is filled with high-density fiber glass wool insulation material to avoid heat transfer. Doors are provided with gaskets. Aluminum trays are placed on the Channels fitted in the dryer. (Stainless steel trays are available)

          Dynamically balanced axial flow type blower fans are provided for uniform air circulation in the drying chamber during process. Machine is provided with control panel board with process timer, digital temperature controller cum indicator etc.

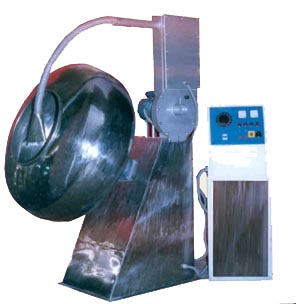

REVOLVING COATING PAN WITH HOT AIR BLOWER



Technical Data

Application

 Sugar Coating Pharmaceutical Tablets

Available

30" / 36" / 42" / 48" / 60"   PAN DIA

Pan's RPM

22 R.P.M

Heater Capacity

1.5 KW

Motor

(According to Size of Pan)  III PH / 440V/AC

Blower Motor

0.25 H.P. / III PH/440V/AC
Pan Mounting Angle

Standard Angle 600 (According to requirement)
Net Weight (According to size of Pan)

            Coating Pan revolves by motorized oil bath gear box with hot air (adjustable) blower. The pan is made by 304 quality stainless steel (adjustable) blower. The pan is made by 304 quality stainless steel (can be provided S.S. 316 quality at extra cost).

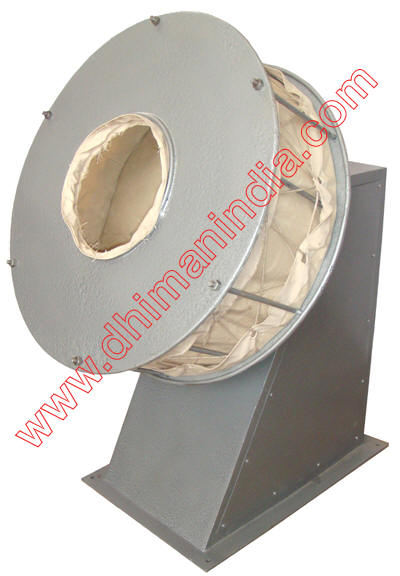

POLISHING REVOLVING PAN

Technical Data

Application

 Polishing Pharmaceutical Tablets
Available 36" Inch
Pan's RPM 22 R.P.M

Motor

1 H.P.  III PH / 440V/AC
Pan Mounting Angle Standard Angle 600
Nett Weight 250 Kg

          Revolving Polishing Pan  is for Polishing Pharmaceutical Tablets after Sugar Coating or without Sugar Coating Tablets.
